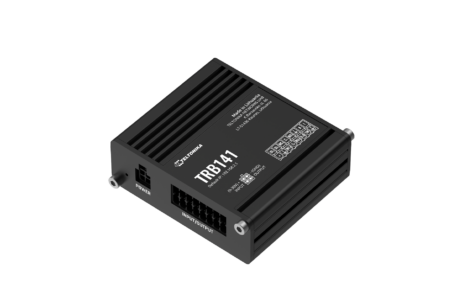

Lýsing This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support. Meiri upplýsingar hér Notenda leiðbeiningar MOBILE Mobile module 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received SMS/Call SMS status, SMS configuration, Call utilities NETWORK Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT Brige Direct connection (bridge) between mobile ISP and device on LAN Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget Firewall Port forwards, traffic rules, custom rules DHCP Static and dynamic IP allocation DDNS Supported >25 service providers, others can be configured manually SECURITY Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server services can run simultaneously MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log FOTA Firmware update from sever, automatic notification SSH SSH (v1, v2) SMS SMS status, SMS configuration MQTT MQTT Broker, MQTT publisher JSON-RPC Management API over HTTP/HTTPS Modbus Modbus TCP status/control RMS Teltonika Remote Management System (RMS) SYSTEM CHARACTERISTICS CPU ARM Cortex-A7 1.2 GHz CPU RAM 128 MB (50 MB available for userspace) FLASH memory 512 MB (70 MB available for userspace) FIRMWARE / CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point FOTA Update FW/configuration from server RMS Update FW/configuration for multiple devices Keep settings Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system RutOS (OpenLinux based Linux OS) Supported languages Busybox shell, Lua, C, C Development tools SDK package with build environment provided INPUT/OUTPUT Input 2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input (4-20 mA), Output 2 x Relay outputs (latching and non latching) Configurable I/O 2 x Configurable Digital Inputs/Outputs on 4 pin power connector 1-Wire 1 Events SMS status POWER Connector 4 pin industrial DC power socket Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max Power consumption < 5 W PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) USB Virtual network interface via USB I/Os 16 Inputs/Outputs pin connector, 2 Inputs/Outputs pin on 4 pin power connector Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V Power 4 pin power connector with 2 x configurable Digital Inputs/Outputs Anntenas 1 x SMA for LTE Reset Restore factory settings button PHYSICAL SPECIFICATIONS Casing material Aluminum housing Dimensions 60 mm x 70 mm x 18 mm (H x W x D) Weight 136 g Mounting options Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options OPERATING ENVIRONMENT Operating temperature -40 °C to 75 °C Operating humidity 10 % to 90 % non-condensing Ingress Protection Rating IP30 REGULATORY & TYPE APPROVALS Regulatory CE/RED, EAC, RoHS, WEEE EMI Standards Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 ESD EN 61000-4-2:2009 RS EN 61000-4-3:2006 A1:2008 A2:2010 EFT EN 61000-4-4:2012 Surge protection EN 61000-4-5:2014 CS EN 61000-4-6:2014 DIP EN 61000-4-11:2004 RF Standards EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 SAFETY Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014 A11:2017 EN 50385:2017 EN 62232:2017
