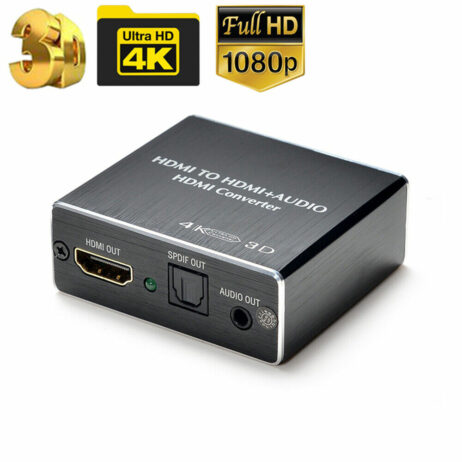

Lýsing Þetta tæki tekur 4K HDMI mynd merki og tekur hljóðið út úr merkinu. Virkar á HDCP. Snúra fyrir spennu frá USB. Description: This 4K x 2K HDMI Audio Extractor not only to meet the ideal image of the HDTV but also to meets the need for to extract Audio from HDMI Source. It can extract the Digital Audio Signal embedded in HDMI source and convert to 3.5mm Analog Audio output and SPDIF output at the same time The SPDIF Output Both Can Support 2.0CH Audio or 5.1CH Audio Including Dolby Digitla 5.1CH and DTS 5.1CH Specification: Input Port: 1x HDMI IN, 1x Micro USB Power Port, 1x EDID Audio (Pass/2CH/5.1CH) Output Port: 1x HDMI OUT, 1x SPDIF (Optical), 1x 3.5mm Jack Input Resolution: 4096×2160@30Hz/3480×2160@30Hz/ 2160P@30Hz/ 1080P@50/60Hz/ 1080i/720p/576i/480p/480i Support Video Color Format: 24Bit/Deep Color 30Bit, 36Bit Max Bandwidth: 340MHz Max Baud Rate: 10.2Gbps Max Working Current: 500mA Three Switing Audio EDID Settings: Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF output audio both 5.1ch and 2.0ch (it depends on the audio source channel) and L/R will output audio with 2.0ch. 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio. 5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF/Analog. Package Included: 1x HDMI Audio Extractor 1x Micro USB cable 1x User Manual
