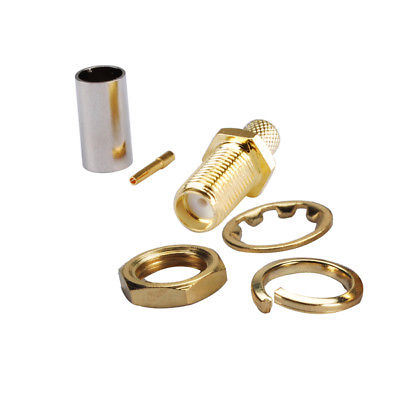

Lýsing SMA kona. Vönduð SMA Sería af tengjum Product Series: SMA Product Type: Cable mount Application: Crimp Attachment/Affixment: – Body Plating: Gold-plated Body Termination: Crimp Cable Type: LMR200 Connector Body Style: Straight Connector Material: Brass Contact Plating: Gold Contact Termination: Solder Gender: Plug Impedance: 50 Ohm Applications Base stations Antennas Telecommunications Instrumentation PC/LAN MIL-C-39012，IEC169-15，CECC22110 Key performance Temperature Range…………-65?C to 165?C Characteristic Impedance…………50 Ohm Insulation Resistance…………≥5000 M? voltage rating…………335V Frequency Range With flexible cable…………0-12.4GHz With Semi-rigid/flexble cable…………0-18GHz Contact resistance Center conductor…………≤3.0 m? Outer Conductor…………≤2.0 m? VSWR Center conductor withdrawal force…………≥0.28N Vibration…………10-2000Hz Durability…………500 Cycles Material and Plating Boby…………Brass,gold plated Male Center Contacts…………Brass,gold plated Female Center Contacts…………Beryllium Copper,Gold plated Insulators…………PTFE
